Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: BAKE
  • Model Number: P3
  • Usage: Indoor
  • Tube Chip Color: Full Color
  • Display Function: Video
  • Pixels: 3.9mm
  • Screen Dimension: Customized Size
  • Pixel Pitch: 3.9mm
  • Brightness: 1200 nit
  • Cabinet material: Die-casting aluminium
  • Cabinet size: 500mm*500mm*96mm
  • Cabinet weight: 9.2 Kg/cabinet
  • Pixel configuration: SMD 3in1 black lamp
  • Module size: 250mm*250mm
  • Protection Level: IP40/IP21
  • AC input voltage: 100~240V
  • Pixel density: 65536 point/㎡

Packaging & Delivery

Packaging Details Flight Case and Wooden Case
Delivery Time Shipped in 20 days after payment

Product Description



P3/P5/P6 2015 appearance





P3/P5/P6 2015 The sales point



1Module for easy maintenance







2. The power supply board modular design





3. Modulescan exchange, no distinguish between left and right direction;

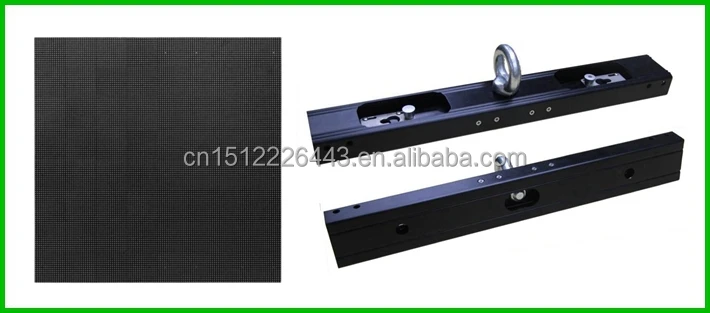

Aluminumwith  new material, single or double beam crane make it lighter.

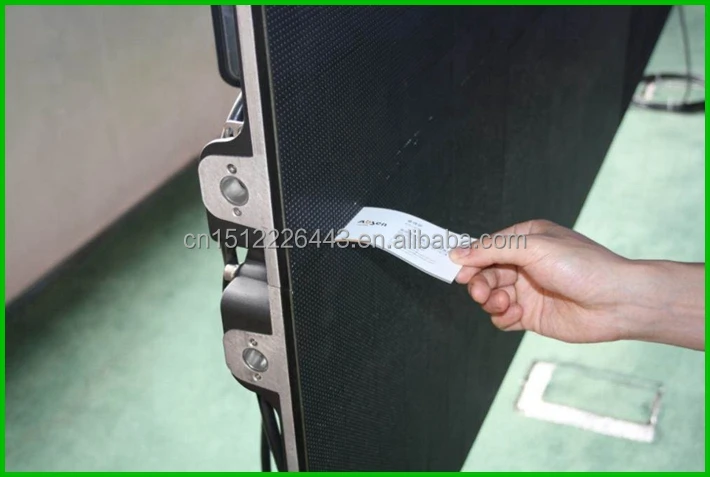

4. seamless splicing The connector is unique, cabinet  gap adjustable, perfect image quality;
module shaping one time, the machining accuracy of + 0.1mm,  easy to realize seamless splicing.


5. Mute design: Excellent heat dissipation, the entire screen on fan design, to achieve zero noise, provide quiet working environment .



 6.  High quality CNC cabinet : Die-cast aluminum cabinet with CNC finishing, the dimension tolerance of less than 0.1mm.





 7.  Power and signal cable plug and socket with high reliability, the connecting conductive good , plug durable , it is convenient and fast to pull out and insert.



8. 65536 high gray scale:  A low brightness display gray almost perfect, have abundant level sense and color saturation.



P3 2015 product uses the 16bit gray scale design:

      (1) Drive IC response of the most narrow OE pulse width up to 20-50ns , can realize very delicate gray-scale  control.

      (2) With BAKE electronic patent drive IC coding scheme, the display effect is more delicate.







9. High refresh rate:   P3 2015---1200Hz

In the shooting as much as 1/2000 professional camera  or video camera , can still guarantee the picture no black line,  no bright line, basic gray scale integrity. Through the control system and the basic types of drive with  IC, showed no afterglow.







10. Intelligent adjust the brightness, color temperature (Nova system only)



The display brightness according to the working environment to adjust the brightness and color temperaturethe image under high environment  light is bright and clear, in dark environment light dazzling and soft.



11. Saving energy and reducing consumption

To help customers achieve efficient utilization of power ,BAKE electronic adopts high efficiency light-emitting chip and energy-saving driving IC binding technology to solve problem of  electric peak time consume , with BAKE electronic intelligent brightness adjustment, greatly saving display continuous use of electricity consumption.



Technical Parameters



Parameters

P3 2015

P5 2015

unit

Pixel Pitch

3.9

5.2

mm

Brightness

1200

 1500

nit

Cabinet size

500*500*96

 500*500*96

mm

Cabinet material

Die - cast aluminum

Die - cast aluminum

Cabinet weight

9.2

9.2

Kg/cabinet

Cabinet weight

36.8

36.8

Kg / square meter

Pixel configuration

SMD3in1

Black Lamp

 SMD3in1

Black Lamp

Module size

250*250

 250*250

mm

Resolution

128*128

96*96

Dot

Pixel density

65536

 36864

Point/square mater

Refresh rate

≥1200

≥1200

Hz

Grayscale

65536

 65536

Level

              Viewing angle

         140/140

 120/120



Protection level

IP40/IP21

IP40/IP21

Power

(maximum / average)

510/170

 540/180

Watts /square meter

Input AC voltage

110~240

110~240

Operating Temperature

- 10~ +40

- 10~ +40

  ℃

Drive mode

1/8

 1/8

 Signal types

AV,S- Video,VGA,DVI,HDMI,SDI,DP



  Control distance

  CAT5 cable:<100 m;

Single mode fiber:<10 km







Application area

Face the stage rental, concerts of  stage project traders  and stage equipment rental corporation.



After-sale service

Technical service

(1) Your inquiry related to our products or price will be replied in 24hrs;

(2) Provide installation training, be able to achieve the system installation and maintenance;

(3) 1.5% Spare parts free of charge which are complete module or power supply, through   training, the user can easily replace the spare parts, so as to ensure the normal operation of the system;

(4) Warranty: 2 years



Company Informtion



Nannning BAKE Electronic Technology Co., Ltd. is a high technology enterprises specializes in manufacturing, selling and serving LED display, LED lighting and intelligent electronic product.

The use of materials and accessories are from the world's top listed companies. We have a deep understanding of user needs, for the LED display and LED lighting has the advantages of energy saving and durability. Our product have obtained CE and ROHS certification.

LED display series: indoor/outdoor single color led display, indoor/outdoor double color message led display, indoor/outdoor full color led display.

Our company has obtained the alibaba supplier assessment report,  we have the factory and the product has the quality assurance, and we have supported Alibaba.com Trade Assurance which is a free service provided by Alibaba.com designed to covers buyers with 100% payment protection.
