Quick Details

  • Light Source: LED
  • Item Type: Street Lights
  • LED Light Source: bridgelux
  • Input Voltage(V): 110~240V
  • Lamp Power(W): 120
  • Lamp Luminous Flux(lm): 12000
  • Lamp Luminous Efficiency(lm/w): 120
  • CRI (Ra>): 70
  • Color Temperature(CCT): Warm White
  • Working Temperature(℃): -40 - 50
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: Aluminum Alloy+pc
  • IP Rating: IP65
  • Certification: CCC, CE, ETL, GOST, RoHS, UL
  • Warranty(Year): 3
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: BAKE
  • Model Number: UNI-STO5STDT-NE-3G
  • Power Factor: ≥0.95
  • Install Diameter: 60-80mm
  • Power Efficiency: ≥90%
  • Bean Angle: 155*65
  • Operating Humidity: 10%-90%RH
  • Dimension(mm): L529*W342*H130mm
  • Net Weight: 5.3±0.2kg
  • led qty: 60pcs
  • Power: 30w/40w/60w/80w/100w
  • Application: Street ,road,high way

Packaging & Delivery

Packaging Details Packing Size:578*416*204mm Weight:6.7Kg

3 years warranty waterproof bridgelux chip 120w led lamp empty housing



 description of led lamp empty housing  :
3 years warranty waterproof bridgelux chip 120w led lamp empty housing
Item No.UNI-STA5STDT-NE-3G
LED Light SourceBridgelux
Watt120W
LED QTY60PSC
Input Voltage(V):AC 100-240V
Frequency50-60Hz
PF>0.95
Thd<15%
Power Factor>0.9
Lamp Efficiency120Lm/W
Lumen12000
Power Efficiency0.9
LED Color Temperature4000±300K.5000±300K
CRIRa>70
 light distribution curveTypeⅡ
Bean Angle140*85
Tj<65℃±10%(Ta=25℃)
Rja0.45℃/W
Operating Humidity10%-90%RH
Storing Temperature-40℃~45℃
Lifepan50000H
Shell MeterialAluminum Alloy+PC
IP RatingIP65
Dimension(mm)L529*W342*H130mm
Net Weight5.3±0.2kg
Packing Dimension578*416*204mm
Warranty3Years
CertificationCE,ETL,GOST,CCC,UL,CUL,ROHS



led lamp empty housing features:

1.70-80% energy saving compare with traditional light .
2.Energy saving, Environment friendly, No UV and Mercury, be comply with ROHS.
3.Wide input voltage (AC100-250V), High switchon/off, short time for pulse-on, no flashing
4.Using of high brightness LED chip and adopt radiation heat dissipation method to ensure LED efficiency,long lifespan.
5.Insulated low voltage LED driver, Have overvoltage surge, short circuit, overload protection function,Safety, reliable.
6.Using single constant current switching power to supply LED power supply mode., ensure LED light source on stable working.
7.No flicker, no glare even switch-on/off frequently.3 years warranty.
8.High CRI, good for antiseismic, nice appearance, easy for installation and transportation.

Product  Display :

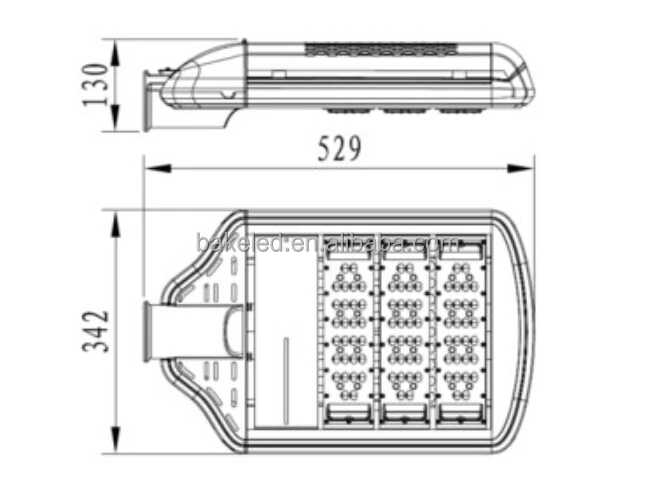

Product sice(mm)

 led lamp empty housing application:

 1. Airports;

2. Corporate Campuses;

3. Healthcare; Municipal;

4. Schools & Universities;

5. Site & Area;

6. Street lighting;

7. Government

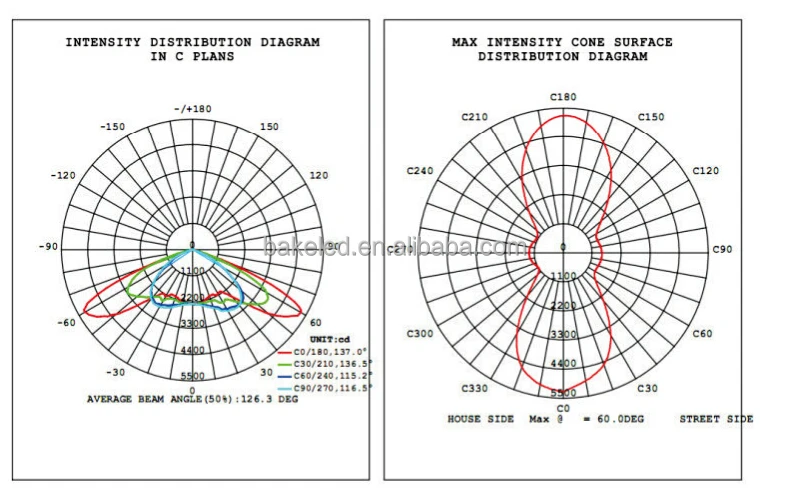

distribution of luminous intensity

Quality control system:

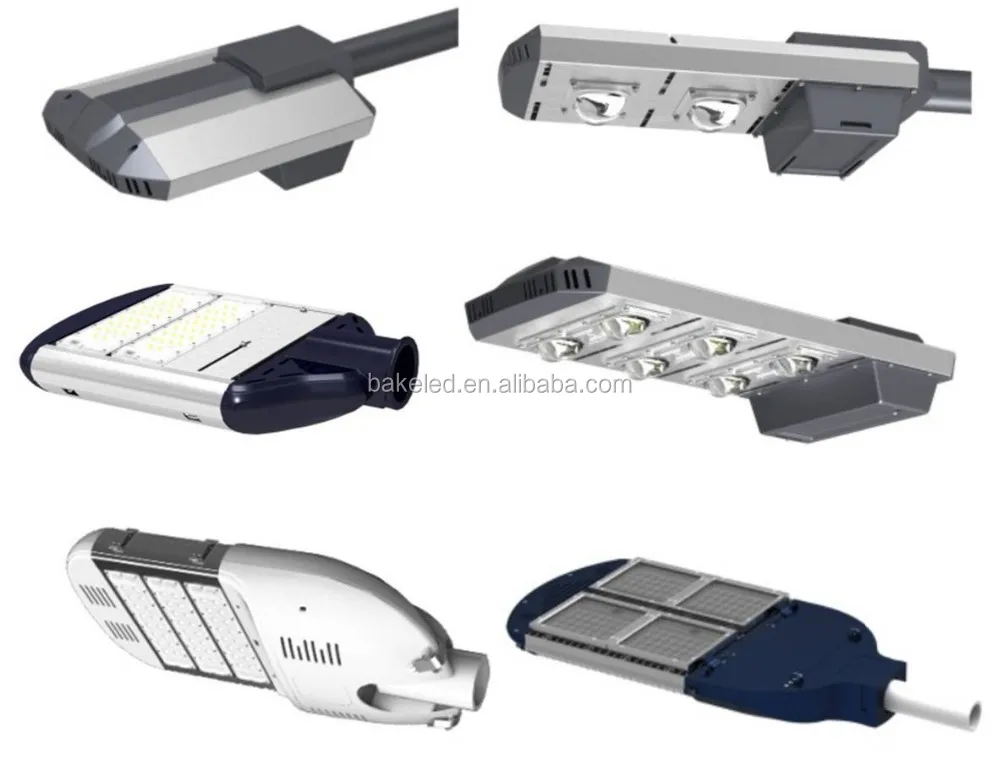

Our product Item:



LED display series:

1) Outdoor LED display: P6,P8,P10,P16

2) Indoor LED display: P3,P4,P5,P6,P7.62,P8,P10

3) LED small pitch pixel: P1.6,P1.9,P2,P2.5,P3



LED lights series:

LED beans Gall lights, LED ceiling lights, LED down lights, LED flood lights, LED landscape lights, LED panel lights, LED spot lights, LED street lights, LED tube lights

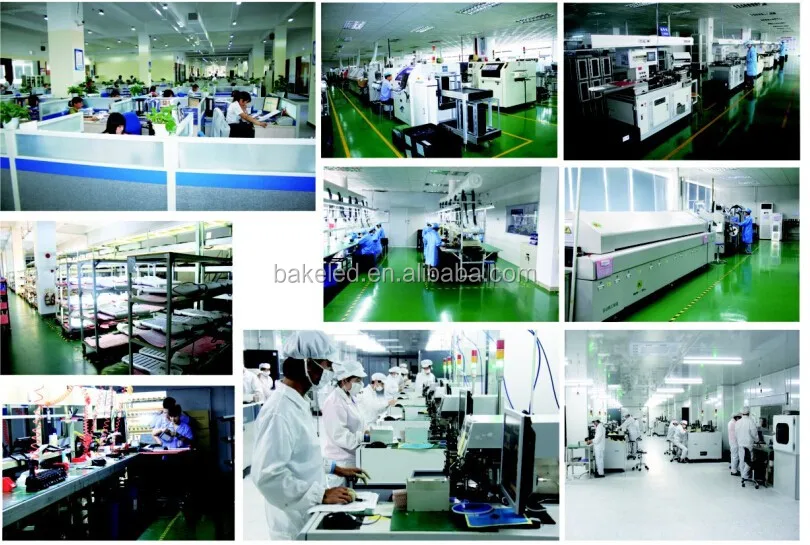

Our  Company(Workshop) :


    Bake company by virtue of years of production, sales and installation in LED display, LED lighting products, the use of materials and accessories are from the world's top listed companies. We have a deep understanding of user needs, for the LED display and LED lighting product key technology for performance optimization is better, to strengthen the LED product and has the advantages of energy saving and durability.



Certifications:


RFQ:

 Q:In what way I can pay you the order?

      A:T/T,Western Union,L/C,Paypal are available to us.

♦ Q:How many days can delivery?

      A:Based on the quantity of products,in general within 10˜15days.

♦ Q:Can you provide OEM/ODM?

      A:OEM/ODM is available,we can place the order regarding on your requirements.

♦ Q:What type of shipping can you provide?

      A:According to the volume/weight,both express and bulk freight are available.

♦ Q:How many years warranty can you offer?

      A:We specilized in producing the best quality products with 3-year-warrantyand whole life service for you.

♦ Q:Do you have disount for your products?

A:Discount will be offered according to order quantities.

Contact  Information:

If you are interested in any of our LED Street Lights, please feel free to contact me:



Person:Sandy



Tel:+86-0771-4955453



Mob:+86-18776151492



Skype: sandyliu818



WeChat:1183997692
